BIG NANON
A High-Power Model Born from Researchers’ Feedback
Built on the uniform, high-quality spinning technology of NANON, our best-selling model, BIG NANON offers more power and practical performance in response to researchers’ requests.
400 Systems Delivered
Built on the technology of NANON, used at The University of Tokyo, MIT, University of Washington, King Saud University and many more.
Our specialist will reply by the next business day (Japan time).
High-Power Features of BIG NANON
-
Spinning DistanceExtended Spinning Distance: 250 mm
Solves issues caused by short distances and enables high-precision spinning with reduced fiber scattering.
-
Larger ChamberGreater fiber collection
Expanded internal space improves fiber collection efficiency.
-
Syringe PumpsTwo Syringe Pumps
Two different solutions can be spun at the same time, for example to make core–shell nanofibers.
-
High Voltage Power SupplyHigh-Voltage Power Supply up to 40 kV
Upgraded from 30 kV (NANON). Supports a wide range of materials and spinning conditions.
-
Sterility & CleanlinessChamber Made of Stainless Steel
Facilitates cleaning and sterilization.
-
Production OutputHigher Production Throughput
The 11-syringe clip spinneret enables higher nanofiber output.
BIG NANON Major Performance and Specifications
| Purpose of use | Research and development |
|---|---|
| Typical nanofibers to spin | Nonwovens of double size of A4 (200mm×600mm) Aligned membrane Core/shell nanofiber Porous fiber |
| Standard spinneret | Clip |
| Optional spinneret | Vertical Clip 11-syringe Clip Tubeless Coaxial Multiple jet; 4-holes |
| Standard collector | Plate |
| Optional collector | Drum φ200 w200（up to 3000rpm） Drum φ100 w200（up to 3000rpm） Drum φ200 w30（up to 3000rpm） Disk（up to 3000rpm） Mandrel （up to 100rpm） Roll to roll 200mm Y-axis Slide |
| Syringe Pump | 2 sets of syringe pumps (To mount 3 syringes each) |
| High voltage power supply | Voltage: 0.0 to 40.0kV Current: 0.0 to 100.0μA |
| Traversing speed | 300mm/sec |
| Rotation speed of collectors | Drum; 100 to 3000rpm Disk; 100 to 3000rpm Mandrel; 50 to 100rpm |
| Spinning distance | 50 to 250mm |
| Programmable parameter | ・High voltage output ・Feed rate of solutions from pump ・Rotation speed of collector ・Up/down moving distance of slider (semi-automatic) ・Frequency and interval of cleaning ・Traversing speed and distance |
| Fan airflow (intake / exhaust) | 12 ㎥/hr or more |
| Feed rate | 0.1 to 60ml/hr (per pump) |
| Capacity of syringes | 2.0 / 5.0 / 10.0 (ml) |
| Control | 10-key |
| External dimensions (Except protrusions) | 985W x 890D x 1050H (mm) |
| Weight | 150kg or less |
| Safety devices | ・Safety interlock ・Door lock ・Emergency stop button ・Signal tower ・Exhaust purification filter ・Immediate shutoff of high-voltage output after POWER OFF ・Shutoff of high voltage output when over-current flows |
Components to be integrated

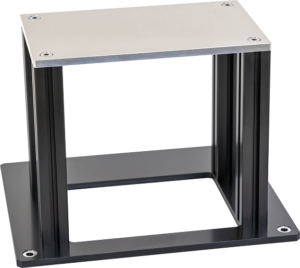

Plate Collector
Drum Collector
Mandrel Collector
Disk Collector
Y-axis Slide Collector

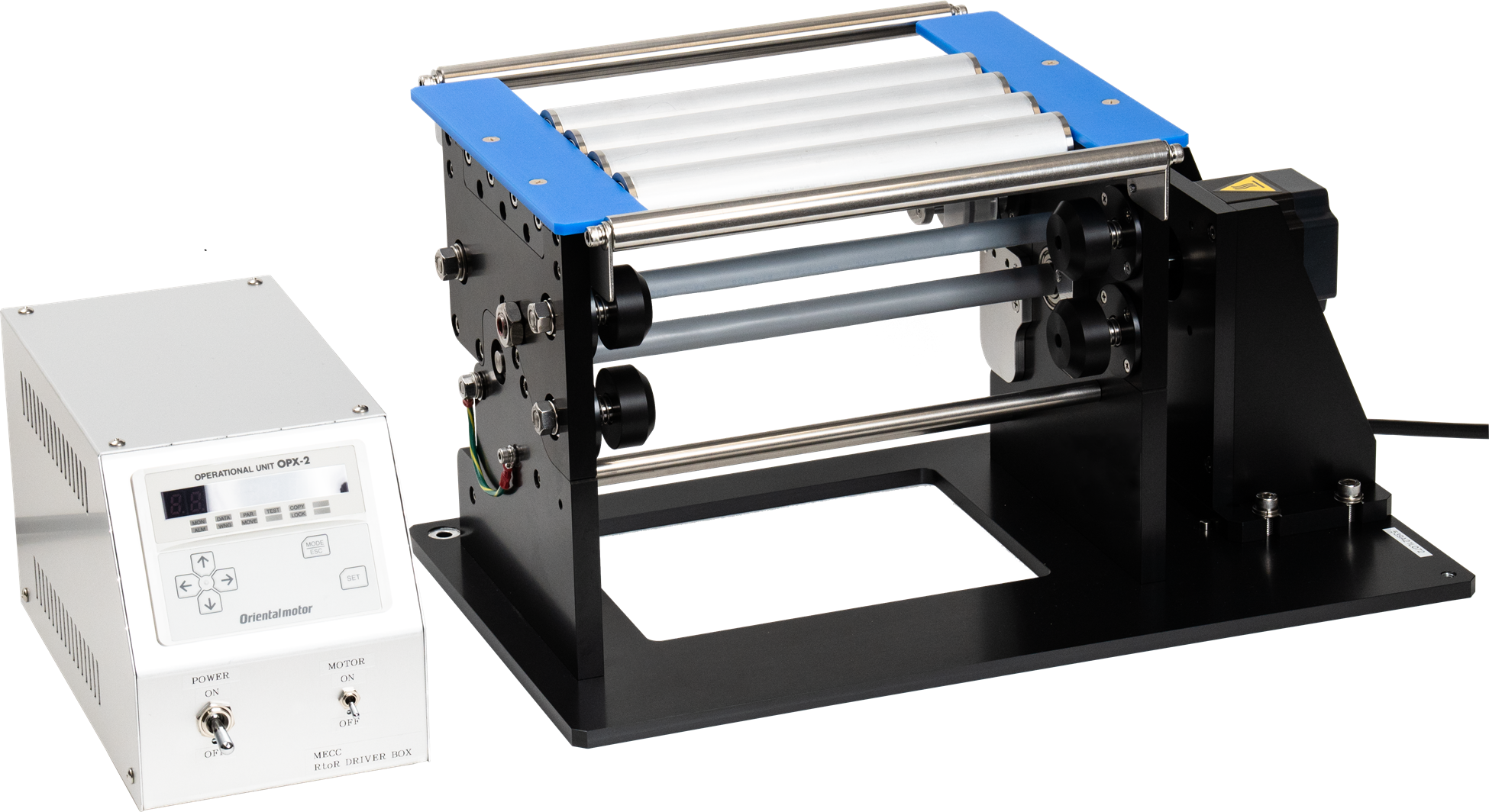

Roll to Roll Collector
Clip Spinneret
Vertical Clip Spinneret
Coaxial Spinneret
Tubeless Spinneret
Multiple Jet Spinneret (MJS)
11-syringe Clip Spinneret
